PK 88002 EH High Performance

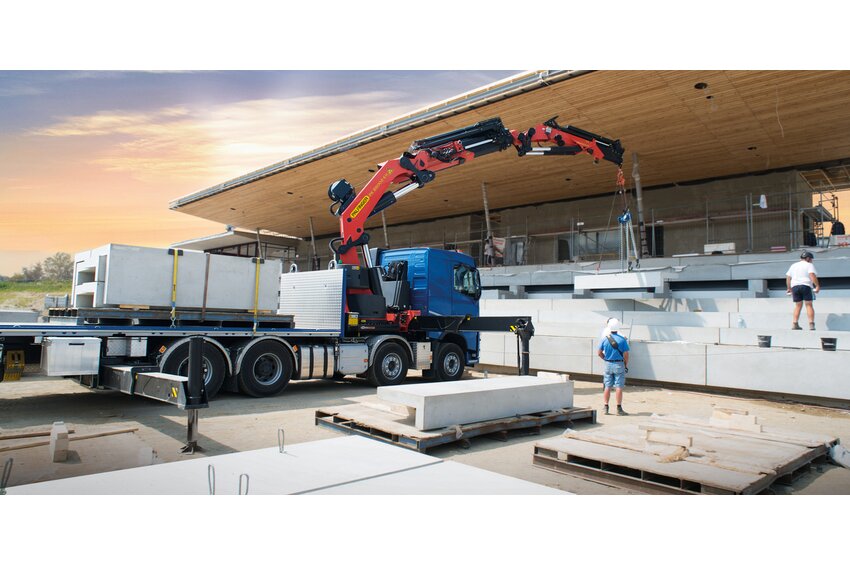

The Power Link Plus enables operations within confined spaces.

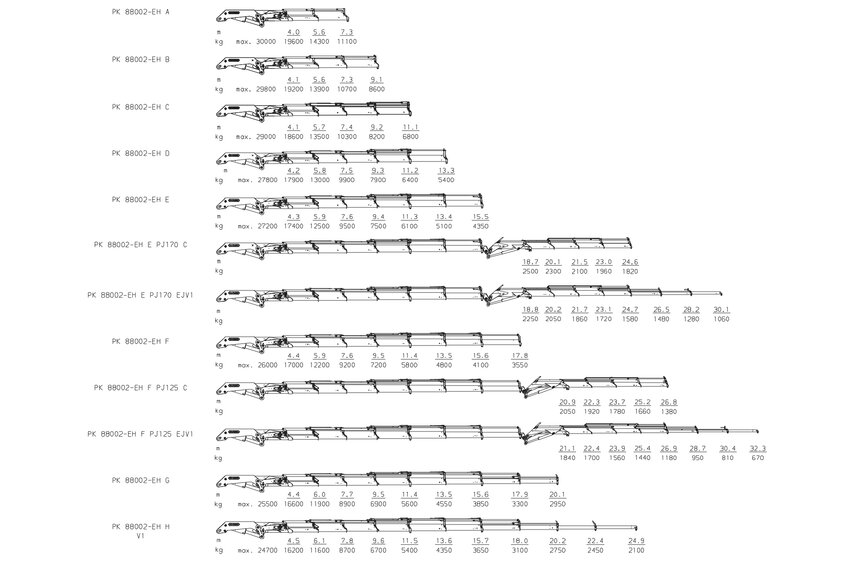

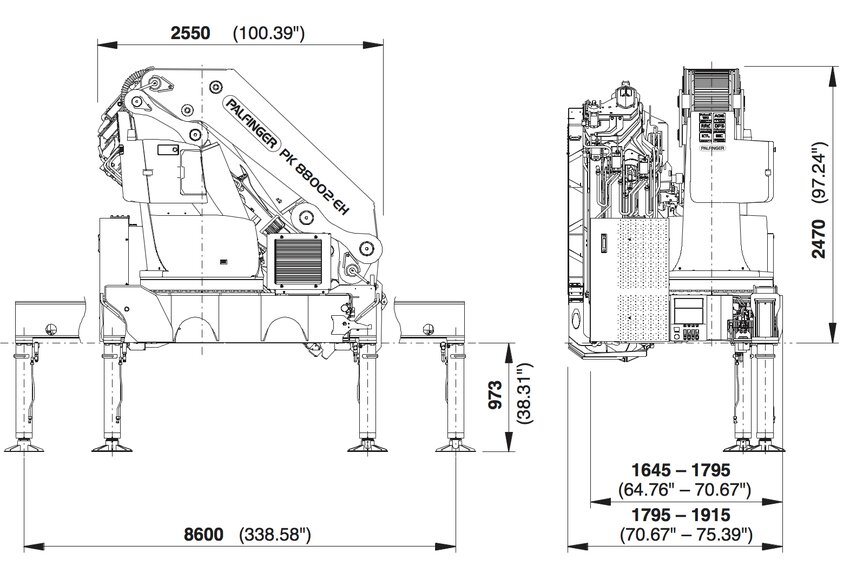

	Lifting moment	Outreach	Slewing angle	Slewing torque	Pressure	Pump capacity	Crane weight	Crane height	Crane width	Installation width	Max stroke length	Max. lifting capacity	Load vertical
A	78.8 mt	7.4 m	∞ °	7.7 mt	36.5 Mpa	110-130 l/min	6780 kg	2470 mm	2550 mm	1645 mm	7266.45 mm	30000 kg	11100 kg
B	77.7 mt	9.3 m	∞ °	7.7 mt	36.5 Mpa	110-130 l/min	7140 kg	2470 mm	2550 mm	1645 mm	9130.45 mm	29800 kg	8600 kg
C	76.8 mt	11.3 m	∞ °	7.7 mt	36.5 Mpa	110-130 l/min	7505 kg	2470 mm	2550 mm	1645 mm	11149.45 mm	29000 kg	6800 kg
D	75.9 mt	13.5 m	∞ °	7.7 mt	36.5 Mpa	110-130 l/min	7849 kg	2470 mm	2550 mm	1645 mm	13334.45 mm	27800 kg	5400 kg
E	75.0 mt	15.7 m	∞ °	7.7 mt	36.5 Mpa	110-130 l/min	8180 kg	2470 mm	2550 mm	1745 mm	15544.45 mm	27200 kg	4350 kg
F	74.1 mt	18.0 m	∞ °	7.7 mt	36.5 Mpa	110-130 l/min	8479 kg	2470 mm	2550 mm	1790 mm	17800 mm	26000 kg	3550 kg
G	73.3 mt	20.2 m	∞ °	7.7 mt	36.5 Mpa	110-130 l/min	8736 kg	2470 mm	2550 mm	1795 mm	20073.45 mm	25500 kg	2950 kg
H	72.9 mt	22.5 m	∞ °	7.7 mt	36.5 Mpa	110-130 l/min	8923 kg	2470 mm	2550 mm	1795 mm	22397.45 mm	24700 kg	2450 kg
