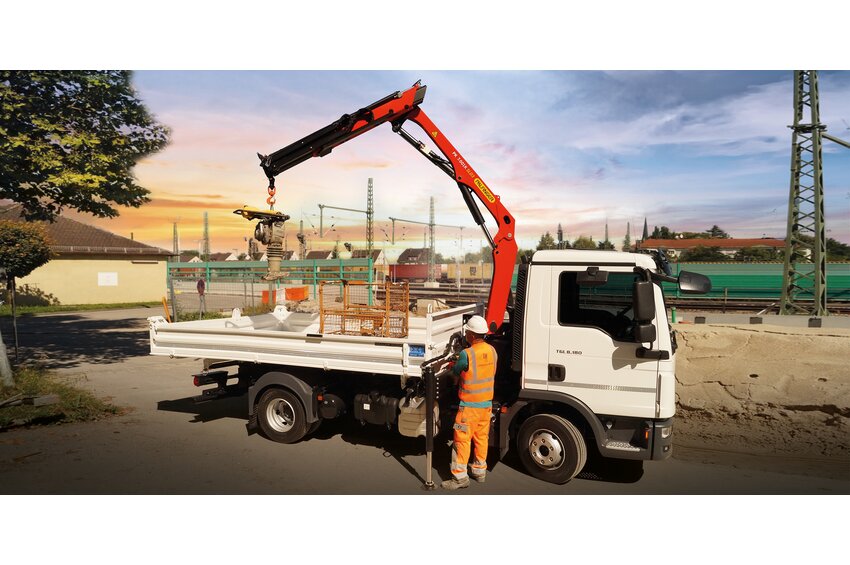

PK 7.001K SLD 3
POWERFUL PARTNER FOR MUNICIPAL JOBS
- Shorter load cycle times due to High Speed Extention
- Maximum utilisation of the working range due to HPSC
- Higher payloads due to intelligent lightweight design

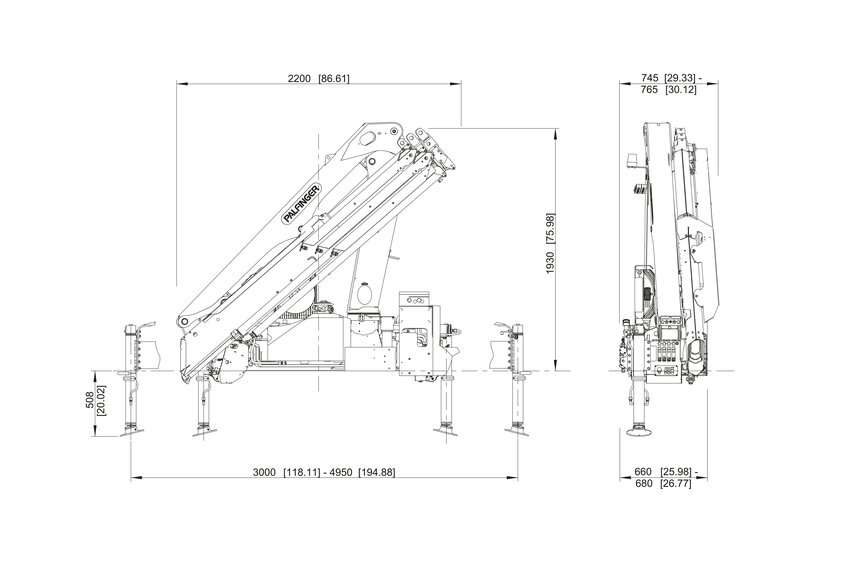

Technical data
| Max. lifting moment | 6,2 mt |
|---|---|
| Max. lifting capacity | 3300 kg |
| Max. hydraulic outreach | 8,8 m |
| Max. manual outreach | 12,4 m |
| Slewing angle | 400° |
| Stabiliser spread (std) | 3.0 m |
| Width folded | 2,20 m |
| Max. operating pressure | 330 bar |
| Pump capacity | 30 l/m |
| Weight | 735 t |
Technical data

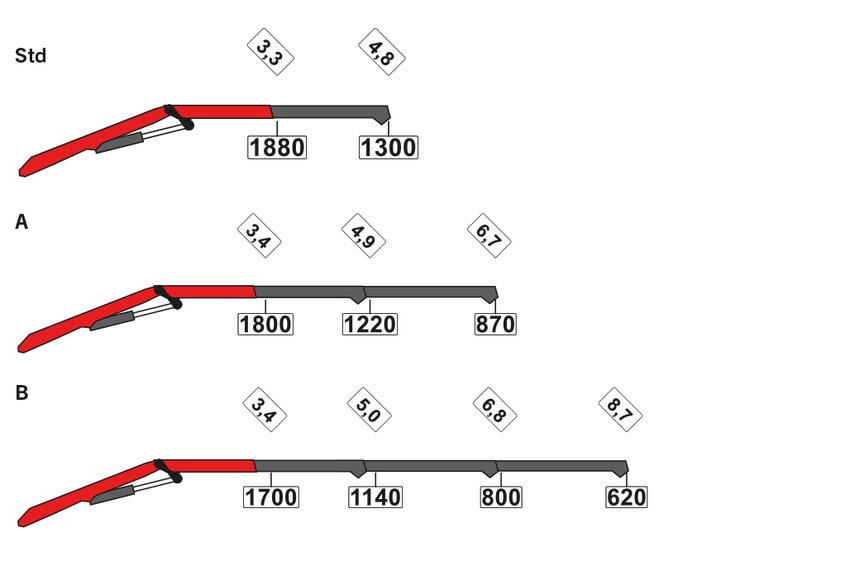

| Lifting moment | Outreach | Slewing angle | Slewing torque | Pressure | Pump capacity | Crane weight | Crane height | Crane width | Installation width | Max stroke length | Max. lifting capacity | Load vertical | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Std | 6.2 mt | 5.0 m | 400 ° | 0.8 mt | 33.0 Mpa | 30 l/min | 735 kg | 1930 mm | 2200 mm | 660 mm | 4800 mm | - | 1300 kg |
| A | 6.0 mt | 6.9 m | 400 ° | 0.8 mt | 33.0 Mpa | 30 l/min | 815 kg | 1930 mm | 2200 mm | 660 mm | 6700 mm | - | 870 kg |
| B | 5.8 mt | 8.8 m | 400 ° | 0.8 mt | 33.0 Mpa | 30 l/min | 885 kg | 1930 mm | 2200 mm | 660 mm | 8700 mm | - | 620 kg |
