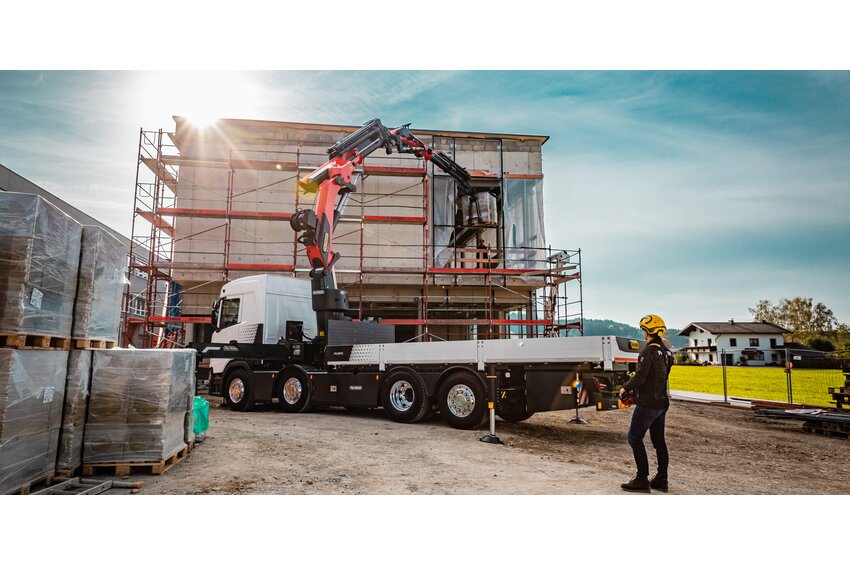

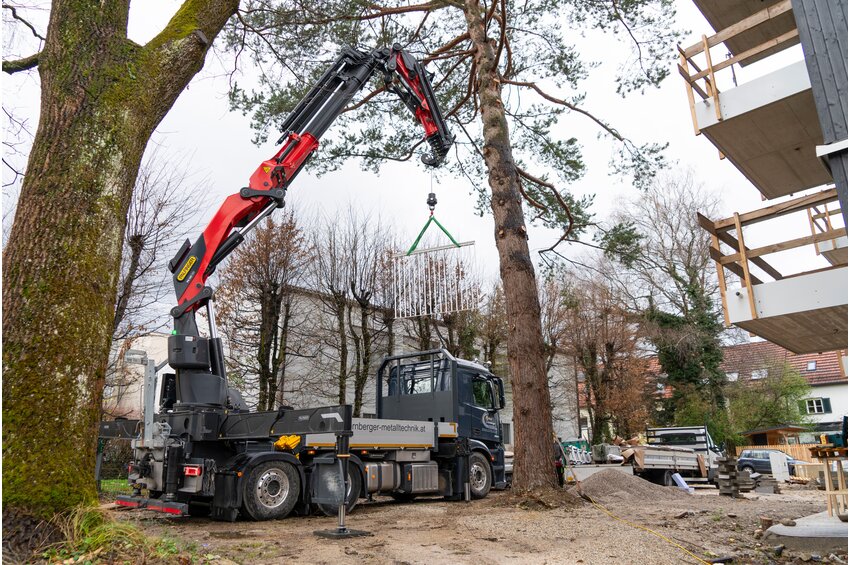

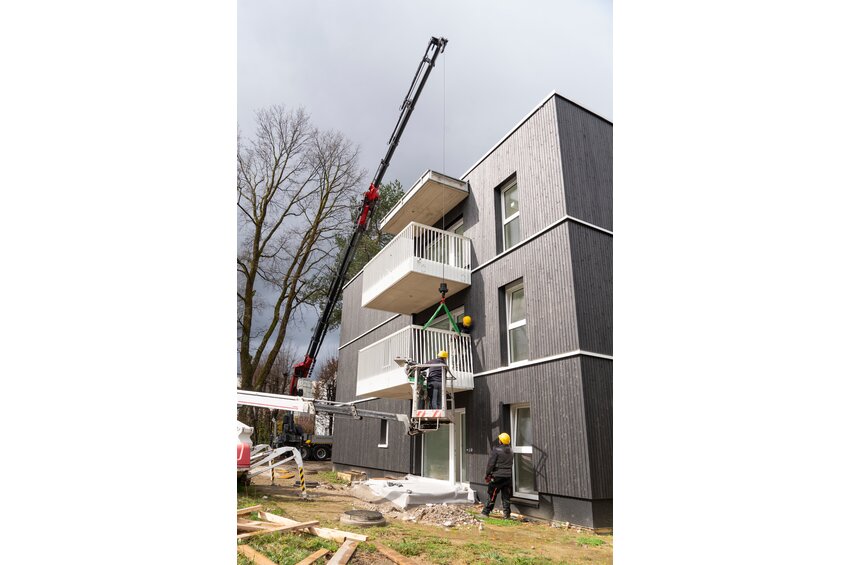

PK 580 TEC

• More intelligent operation with PALTRONIC 180 control electronics
• Extra smooth control thanks to LX-6 control valve
• Very stiff and light boom system thanks to P-Profile
• More efficient and faster due to continuous slewing system
• High user friendliness due to in-house developed radio remote control PALcom P7
• More efficiency with fly jib due to DPS-C
• Maximum utilisation of the working range thanks to extended HPSC
• More lifting power due to S-HPLS
• Practical and attractive due to Functional Design

Technical data

Max. lifting moment	55,5 mt
Max. lifting capacity	20000 kg
Max. hydraulic outreach	21,2 m
Slewing angle	∞
Stabiliser spread (std)	7.8m m
Fitting space required (std)	1,43 m
Width folded	2,55 m
Max. operating pressure	385 bar
Pump capacity	90 - 120 l/m
Weight	4670 t
Slewing torque with 2 gears	5,9 mt

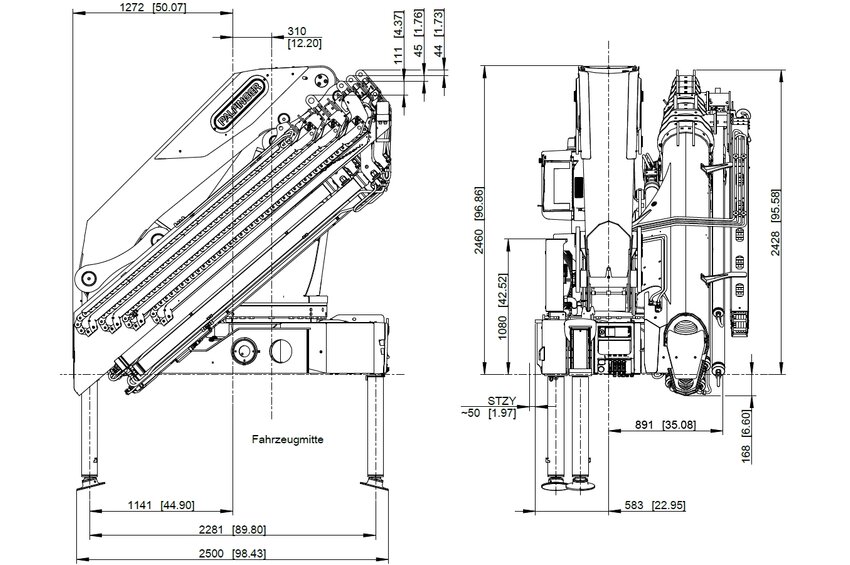

Technical data

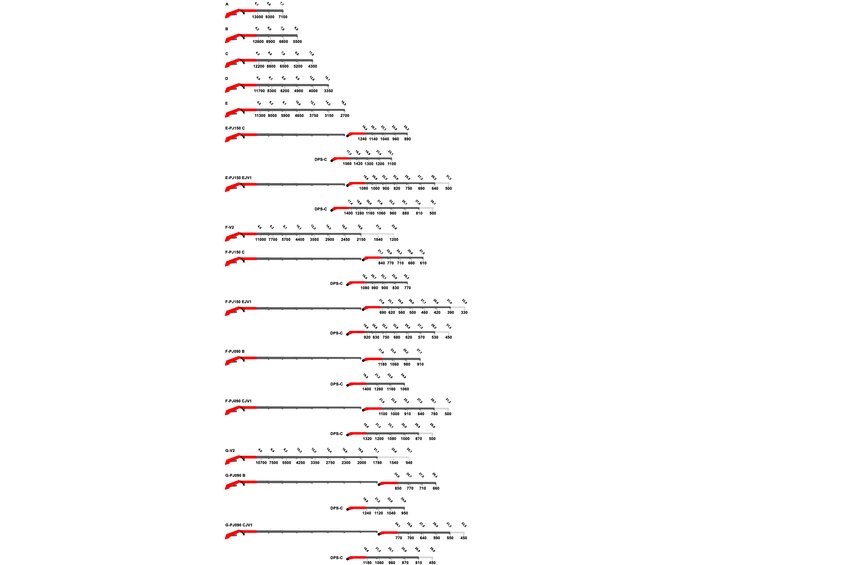

	Lifting moment	Outreach	Slewing angle	Slewing torque	Pressure	Pump capacity	Crane weight	Crane height	Crane width	Installation width	Max stroke length	Max. lifting capacity	Load vertical
A	54.7 mt	7.9 m	∞ °	5.9 mt	38.5 Mpa	90-120 l/min	4670 kg	2460 mm	2550 mm	1440 mm	7700 mm	-	7100 kg
B	53.1 mt	9.9 m	∞ °	5.9 mt	38.5 Mpa	90-120 l/min	4950 kg	2460 mm	2550 mm	1440 mm	9800 mm	-	5500 kg
C	52.3 mt	12.0 m	∞ °	5.9 mt	38.5 Mpa	90-120 l/min	5200 kg	2460 mm	2550 mm	1440 mm	11900 mm	-	4300 kg
D	51.5 mt	14.3 m	∞ °	5.9 mt	38.5 Mpa	90-120 l/min	5470 kg	2460 mm	2550 mm	1440 mm	14100 mm	-	3350 kg
E	50.7 mt	16.6 m	∞ °	5.9 mt	38.5 Mpa	90-120 l/min	5720 kg	2460 mm	2550 mm	1525 mm	16500 mm	-	2700 kg
F	50.1 mt	18.9 m	∞ °	5.9 mt	38.5 Mpa	90-120 l/min	5950 kg	2460 mm	2550 mm	1525 mm	18800 mm	-	2150 kg
G	49.6 mt	21.2 m	∞ °	5.9 mt	38.5 Mpa	90-120 l/min	6100 kg	2460 mm	2550 mm	1525 mm	21100 mm	-	1780 kg
