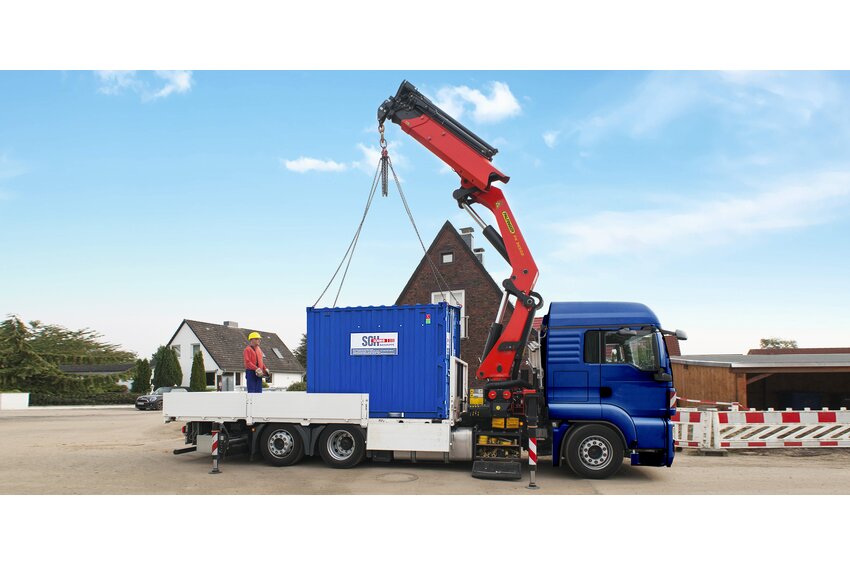

PK 36502 High Performance
Powerful performance with low dead weight and high efficiency.
- High value retention thanks to coating technology
- Additional applications due to Power Link Plus
- Maximum utilisation of the working range due to HPSC
- Shorter load cycle times due to High Speed Extention
Technical data
| Max. lifting moment | 34,5 mt |
|---|---|
| Max. lifting capacity | 13200 kg |
| Max. hydraulic outreach | 16,3 m |
| Max. manual outreach | 23,3 m |
| Slewing angle | 400° |
| Slewing torque with 1 gear | 4,0 mt |

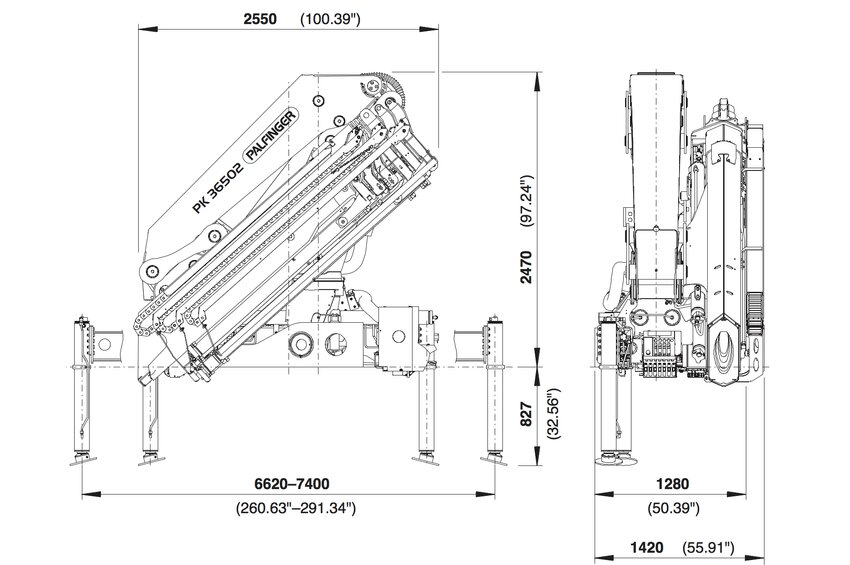

| Stabiliser spread (std) | 6.6 m |
| Fitting space required (std) | 1,28 m |
| Width folded | 2,55 m |
| Max. operating pressure | 320 bar |
| Pump capacity | 80 - 100 l/m |
| Weight | 3800 t |
Technical data

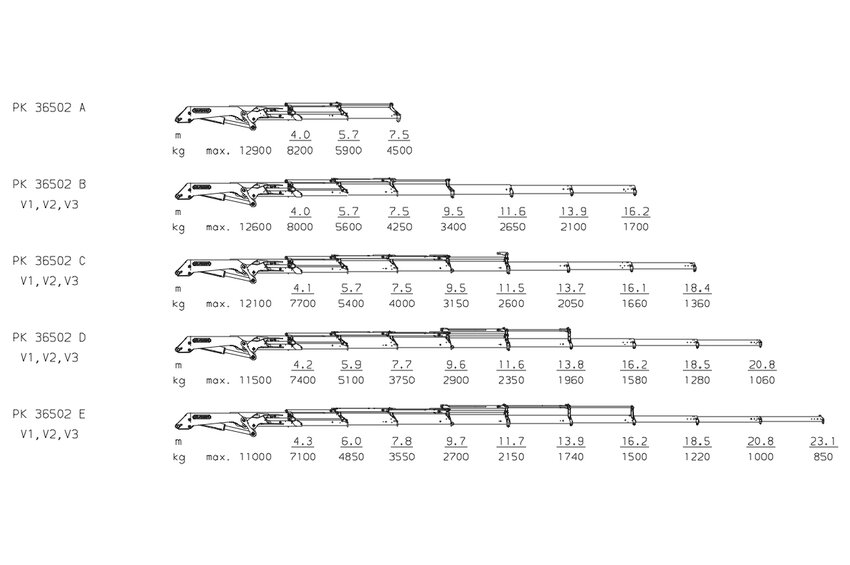

| Lifting moment | Outreach | Slewing angle | Slewing torque | Pressure | Pump capacity | Crane weight | Crane height | Crane width | Installation width | Max stroke length | Max. lifting capacity | Load vertical | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 32.9 mt | 7.6 m | 400 ° | 4.0 mt | 32.0 Mpa | 60-80 l/min | 3800 kg | 2470 mm | 2550 mm | 1280 mm | 7486.95 mm | 12900 kg | 4500 kg |
| B | 32.2 mt | 9.6 m | 400 ° | 4.0 mt | 32.0 Mpa | 60-80 l/min | 4040 kg | 2470 mm | 2550 mm | 1280 mm | 9459.95 mm | 12600 kg | 3400 kg |
| C | 31.5 mt | 11.7 m | 400 ° | 4.0 mt | 32.0 Mpa | 60-80 l/min | 4290 kg | 2470 mm | 2550 mm | 1280 mm | 11516.95 mm | 12100 kg | 2600 kg |
| D | 30.8 mt | 14.0 m | 400 ° | 4.0 mt | 32.0 Mpa | 60-80 l/min | 4530 kg | 2470 mm | 2550 mm | 1280 mm | 13833.95 mm | 11500 kg | 1960 kg |
| E | 30.3 mt | 16.3 m | 400 ° | 4.0 mt | 32.0 Mpa | 60-80 l/min | 4740 kg | 2470 mm | 2550 mm | 1280 mm | 16153.95 mm | 11000 kg | 1500 kg |
