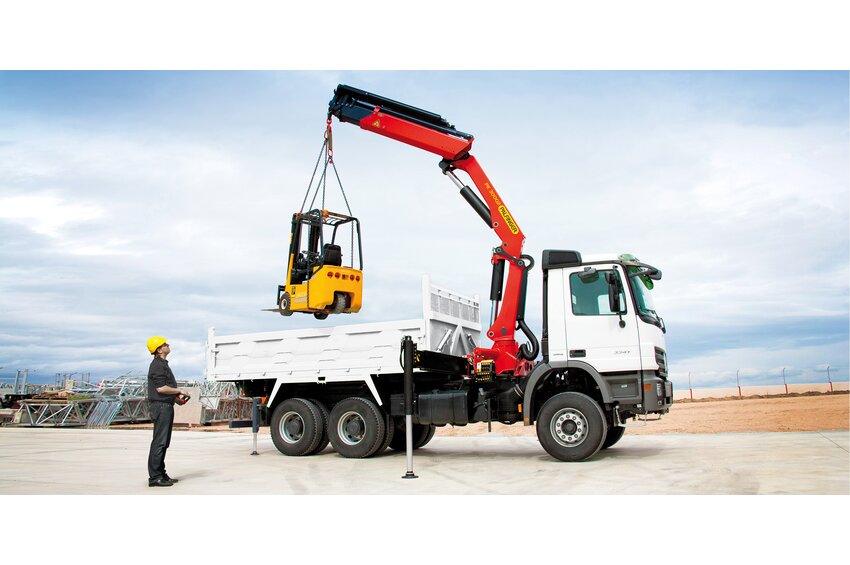

PK 30002 High Performance

Surface protection of highest quality. Perfect appearance during the entire lifetime.

• Perfect appearance and the highest value retention due to coating technology
• Additional applications with Power Link Plus
• Increased operating times due to low-maintenance extension system

Technical data

Max. lifting moment	27,3 mt
Max. lifting capacity	10000 kg
Max. hydraulic outreach	21,3 m
Slewing angle	400°
Slewing torque with 1 gear	3,2 mt
Stabiliser spread (std)	5.6 m

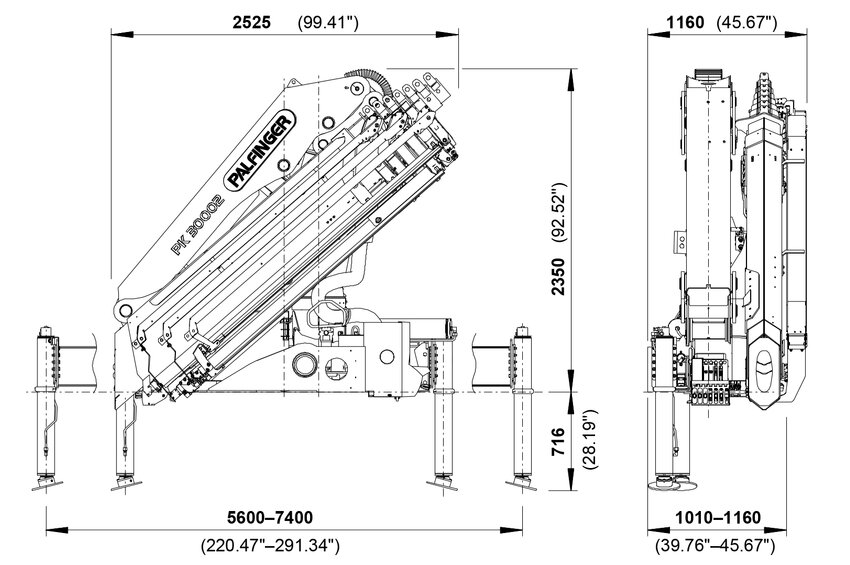

Fitting space required (std)	1,01 m
Width folded	2,53 m
Max. operating pressure	320 bar
Pump capacity	55 - 80 l/m
Weight	2876 t

Technical data

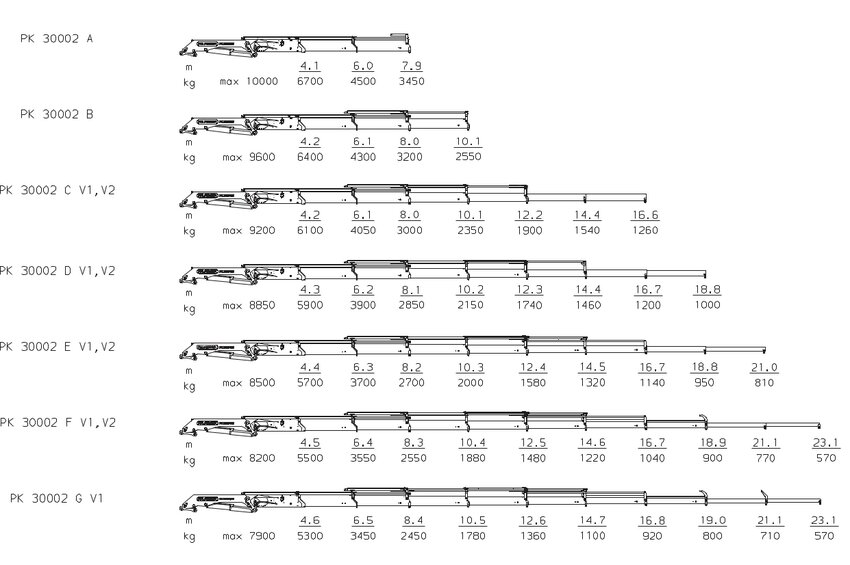

	Lifting moment	Outreach	Slewing angle	Slewing torque	Pressure	Pump capacity	Crane weight	Crane height	Crane width	Installation width	Max stroke length	Max. lifting capacity	Load vertical
A	27.1 mt	8.1 m	400 °	3.2 mt	32.0 Mpa	55-80 l/min	2876 kg	2350 mm	2525 mm	1010 mm	7880.01 mm	10000 kg	3450 kg
B	26.6 mt	10.2 m	400 °	3.2 mt	32.0 Mpa	55-80 l/min	3077 kg	2350 mm	2525 mm	1010 mm	10060.01 mm	9600 kg	2550 kg
C	25.9 mt	12.4 m	400 °	3.2 mt	32.0 Mpa	55-80 l/min	3291 kg	2350 mm	2525 mm	1085 mm	12240.01 mm	9200 kg	1900 kg
D	25.4 mt	14.6 m	400 °	3.2 mt	32.0 Mpa	55-80 l/min	3469 kg	2350 mm	2525 mm	1125 mm	14420.01 mm	8850 kg	1460 kg
E	24.9 mt	16.8 m	400 °	3.2 mt	32.0 Mpa	55-80 l/min	3615 kg	2350 mm	2525 mm	1160 mm	16650.01 mm	8500 kg	1140 kg
F	24.5 mt	19.1 m	400 °	3.2 mt	32.0 Mpa	55-80 l/min	3728 kg	2350 mm	2525 mm	1160 mm	18880.01 mm	8200 kg	900 kg
G	24.2 mt	21.3 m	400 °	3.2 mt	32.0 Mpa	55-80 l/min	3837 kg	2350 mm	2525 mm	1160 mm	21110.01 mm	7900 kg	710 kg
