PK 24001-K High Performance

Its hook height at close range is an important characteristic for efficient load handling

• High value retention thanks to coating technology
• Additional applications due to Single Link Plus
• Maximum utilisation of the working range due to HPSC
• Higher payloads due to intelligent lightweight design
• Shorter load cycle times due to High Speed Extension

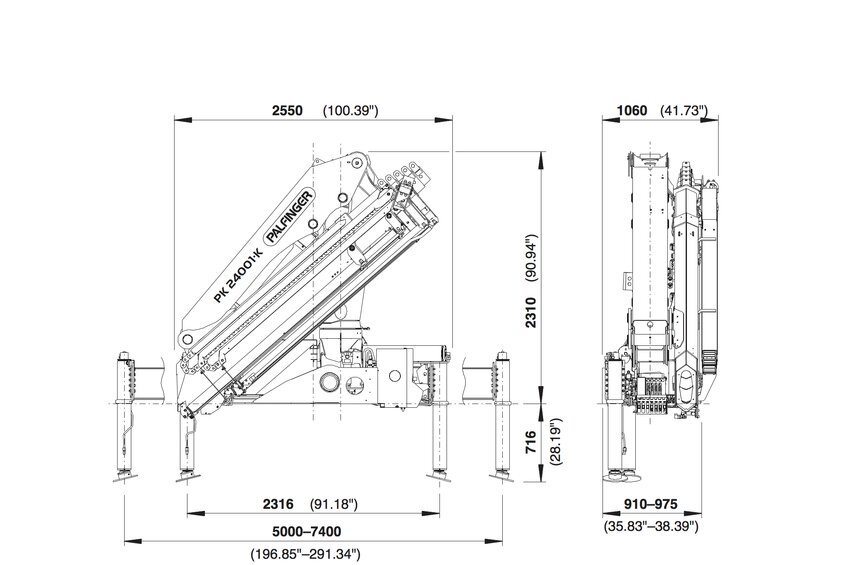

Technical data

Max. lifting moment	23,2 mt
Max. lifting capacity	6100 kg
Max. hydraulic outreach	12,5 m
Max. manual outreach	16,9 m
Slewing angle	400°
Slewing torque with 1 gear	2,8 mt
Stabiliser spread (std)	5.0 m
Width folded	2,55 m
Max. operating pressure	320 bar
Pump capacity	50 - 75 l/m
Weight	2451 t

Technical data

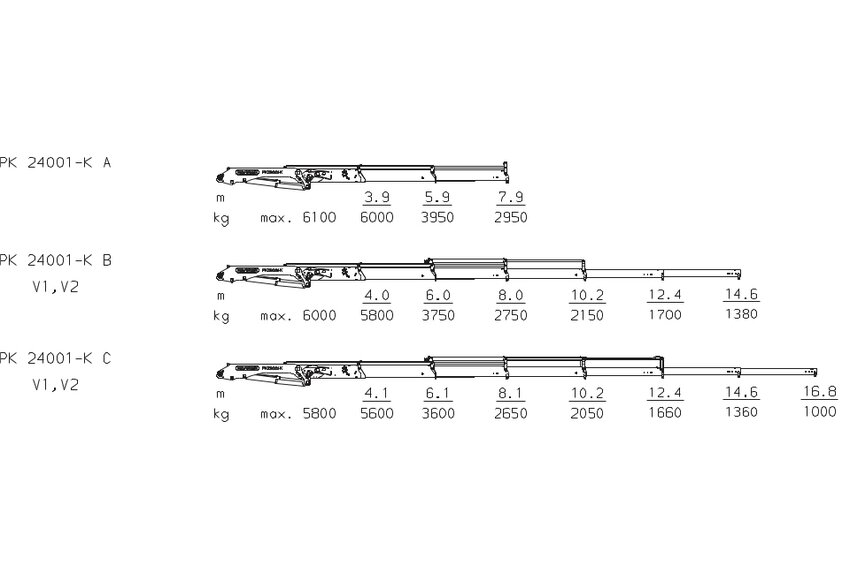

	Lifting moment	Outreach	Slewing angle	Slewing torque	Pressure	Pump capacity	Crane weight	Crane height	Crane width	Installation width	Max stroke length	Max. lifting capacity	Load vertical
A	23.6 mt	8.1 m	400 °	2.8 mt	32.0 Mpa	50-75 l/min	2451 kg	2300 mm	2550 mm	905 mm	7946.22 mm	6100 kg	2950 kg
B	23.2 mt	10.3 m	400 °	2.8 mt	32.0 Mpa	50-75 l/min	2619 kg	2300 mm	2550 mm	905 mm	10166.22 mm	6000 kg	2150 kg
C	22.8 mt	12.5 m	400 °	2.8 mt	32.0 Mpa	50-75 l/min	2743 kg	2300 mm	2550 mm	975 mm	12396.22 mm	5800 kg	1660 kg
