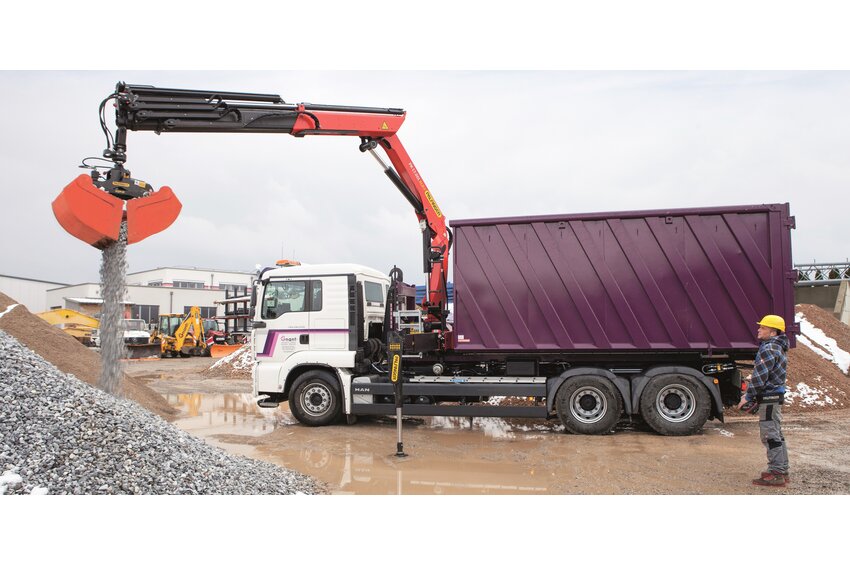

PK 17.001 SLD 3

SOLID, SIMPLE AND AFFORDABLE

• Additional applications with Single Link Plus
• Higher payloads due to intelligent lightweight design
• Maximum reliability due to PALTRONIC
• High degree of user-friendliness thanks to optional radio remote control

Technical data

Max. lifting moment	16,8 mt
Max. lifting capacity	6200 kg
Max. hydraulic outreach	14,8 m
Max. manual outreach	19,0 m
Slewing angle	420°
Slewing torque with 1 gear	2,0 mt
Stabiliser spread (std)	5.0 m
Width folded	2,55 m
Max. operating pressure	330 bar
Pump capacity	40 - 60 l/m
Weight	1670 t

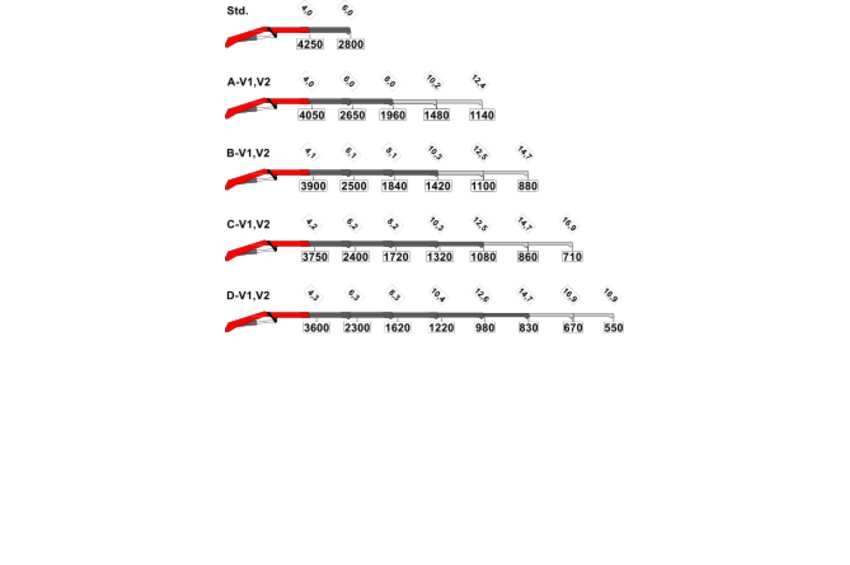

Technical data

	Lifting moment	Outreach	Slewing angle	Slewing torque	Pressure	Pump capacity	Crane weight	Crane height	Crane width	Installation width	Max stroke length	Max. lifting capacity	Load vertical
Std	16.8 mt	6.1 m	420 °	2.0 mt	33.0 Mpa	40-60 l/min	1670 kg	2250 mm	2550 mm	825 mm	6000 mm	-	2800 kg
A	16.3 mt	8.2 m	420 °	2.0 mt	33.0 Mpa	40-60 l/min	1825 kg	2250 mm	2550 mm	825 mm	8000 mm	-	1960 kg
B	15.9 mt	10.4 m	420 °	2.0 mt	33.0 Mpa	40-60 l/min	1960 kg	2250 mm	2550 mm	825 mm	10300 mm	-	1420 kg
C	15.6 mt	12.6 m	420 °	2.0 mt	33.0 Mpa	40-60 l/min	2075 kg	2250 mm	2550 mm	895 mm	12500 mm	-	1080 kg
D	15.3 mt	14.8 m	420 °	2.0 mt	33.0 Mpa	40-60 l/min	2175 kg	2250 mm	2550 mm	895 mm	14700 mm	-	830 kg
