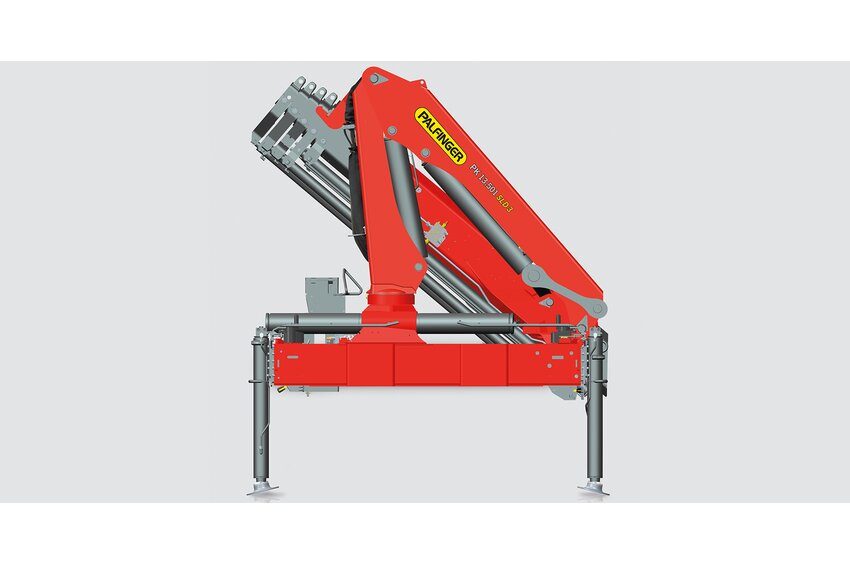

PK 13.501 SLD 3

WELL-ENGINEERED HYDRAULIC- AND ELECTRONIC SYSTEMS

• More power in the hook due to Single Link Plus
• Maximum utilisation of the working range due to HPSC
• Shorter load cycle times due to High Speed Extention
• Maximum reliability due to Paltronic

Technical data

Max. lifting moment	13,1 mt
Max. lifting capacity	6200 kg
Max. hydraulic outreach	14,8 m
Max. manual outreach	19,0 m
Slewing angle	420°
Slewing torque with 1 gear	1,6 mt
Stabiliser spread (std)	5.0 m
Width folded	2,50 m
Max. operating pressure	330 bar
Pump capacity	35 - 50 l/m
Weight	1510 t

Technical data

	Lifting moment	Outreach	Slewing angle	Slewing torque	Pressure	Pump capacity	Crane weight	Crane height	Crane width	Installation width	Max stroke length	Max. lifting capacity	Load vertical
Std	13.1 mt	6.1 m	420 °	1.6 mt	33.0 Mpa	35-50 l/min	1510 kg	2215 mm	2550 mm	740 mm	6000 mm	-	2200 kg
A	12.7 mt	8.2 m	420 °	1.6 mt	33.0 Mpa	35-50 l/min	1660 kg	2215 mm	2550 mm	740 mm	8000 mm	-	1500 kg
B	12.3 mt	10.4 m	420 °	1.6 mt	33.0 Mpa	35-50 l/min	1780 kg	2215 mm	2550 mm	740 mm	10300 mm	-	1080 kg
C	12.0 mt	12.6 m	420 °	1.6 mt	33.0 Mpa	35-50 l/min	1880 mm	2215 mm	2550 mm	740 mm	12500 mm	-	800 kg
D	11.7 mt	14.8 m	420 °	1.6 mt	33.0 Mpa	35-50 l/min	1980 kg	2215 mm	2550 mm	800 mm	14700 mm	-	590 kg
