PK 11002 High Performance

The compact design and Power Link Plus are attributes for efficiency and cost effectiveness

• Maximum precision and safety due to optional AOS
• High value retention thanks to coating technology
• Maximum reliability due to PAL 50
• Additional applications with Power Link Plus

Technical data

Max. lifting moment	9,9 mt
Max. lifting capacity	5700 kg
Max. hydraulic outreach	14,1 m
Max. manual outreach	22,0 m
Slewing angle	400°
Slewing torque with 1 gear	1,3 mt
Stabiliser spread (std)	3.2 m
Width folded	2,33 m
Max. operating pressure	320 bar
Pump capacity	30 - 45 l/m
Weight	1133 t

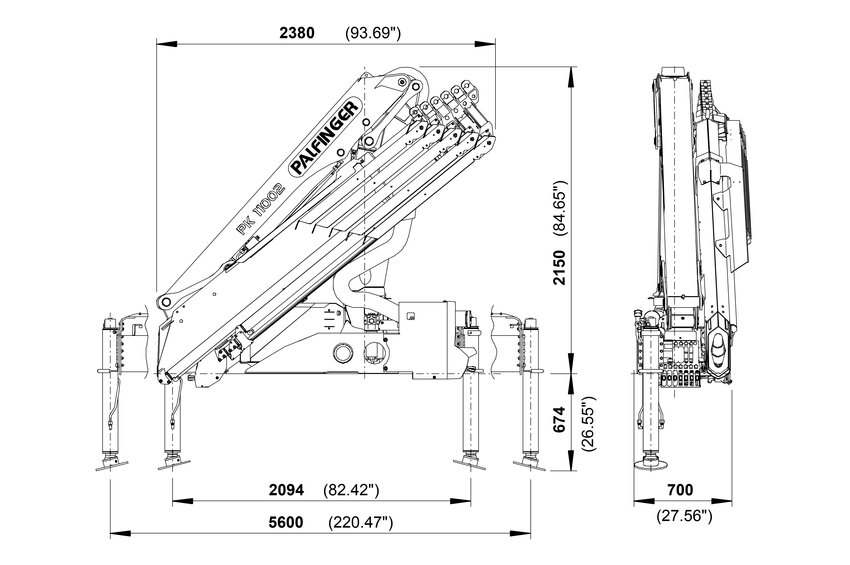

Technical data

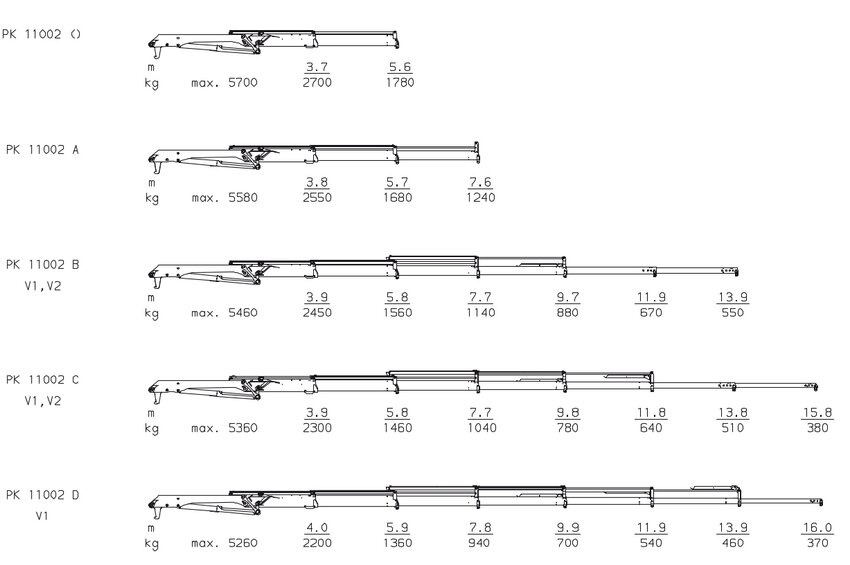

	Lifting moment	Outreach	Slewing angle	Slewing torque	Pressure	Pump capacity	Crane weight	Crane height	Crane width	Installation width	Max stroke length	Max. lifting capacity	Load vertical
Std	10.0 mt	5.8 m	400 °	1.3 mt	32.0 Mpa	30-45 l/min	1133 kg	2150 mm	2325 mm	700 mm	5600 mm	-	1780 kg
A	9.7 mt	7.7 m	400 °	1.3 mt	32.0 Mpa	30-45 l/min	1243 kg	2150 mm	2325 mm	700 mm	7578.22 mm	5580 kg	1240 kg
B	9.3 mt	9.9 m	400 °	1.3 mt	32.0 Mpa	30-45 l/min	1359 kg	2150 mm	2325 mm	700 mm	9708.22 mm	5460 kg	880 kg
C	9.1 mt	12.0 m	400 °	1.3 mt	32.0 Mpa	30-45 l/min	1464 kg	2150 mm	2330 mm	700 mm	11838.22 mm	5360 kg	630 kg
D	8.8 mt	14.1 m	400 °	1.3 mt	32.0 Mpa	30-45 l/min	1560 kg	2150 mm	2380 mm	735 mm	13968.22 mm	5260 kg	450 kg
