PK 1050 TEC
- More intelligent operation with PALTRONIC 180 control electronics
- Extra smooth control thanks to LX-6 control valve
- Very stiff and light boom system thanks to P-Profile
- More efficient and faster due to continuous slewing system
- High user friendliness due to in-house developed radio remote control PALcom P7
- More efficiency with fly jib due to DPS-C
- Maximum utilisation of the working range thanks to extended HPSC
- More lifting power due to S-HPLS
- Practical and attractive due to Functional Design
Technical data
| Max. lifting moment | 95,0 mt |
|---|---|
| Max. lifting capacity | 30000 kg |
| Max. hydraulic outreach | 22,4 m |
| Slewing angle | ∞ |
| Stabiliser spread (std) | 8.8 m |
| Fitting space required (std) | 1,72 m |
| Width folded | 2,55 m |
| Max. operating pressure | 385 bar |
| Pump capacity | 2 x 100 - 130 l/m |
| Weight | 7480 t |
| Slewing torque with 2 gears | 9,1 mt |
Technical data

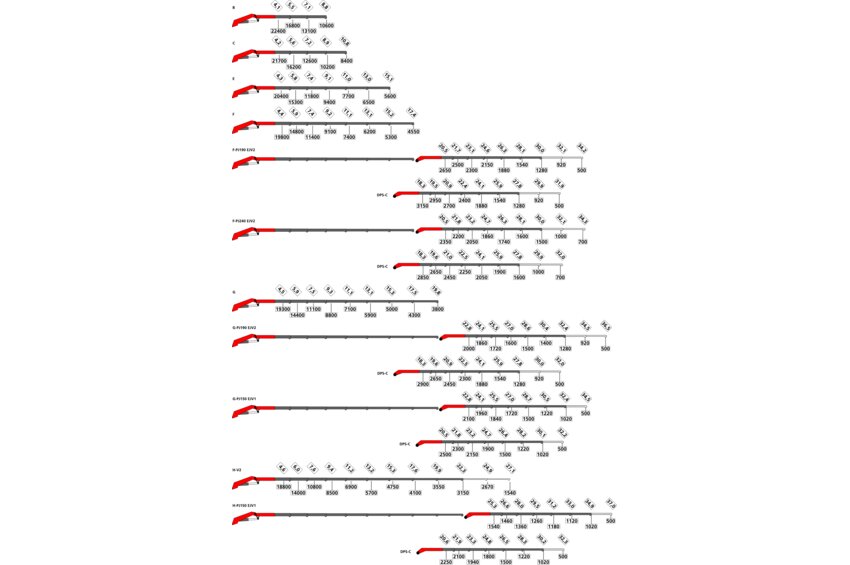

| Lifting moment | Outreach | Slewing angle | Slewing torque | Pressure | Pump capacity | Crane weight | Crane height | Crane width | Installation width | Max stroke length | Max. lifting capacity | Load vertical | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B | 92.9 mt | 9.0 m | ∞ ° | 9.1 mt | 38.5 Mpa | 2x 100-130 l/min | 7483 kg | 2530 mm | 2550 mm | 1720 mm | 8.8 m | - | - |
| C | 90.6 mt | 10.9 m | ∞ ° | 9.1 mt | 38.5 Mpa | 2x 100-130 l/min | 7817 kg | 2530 mm | 2550 mm | 1720 mm | 10.8 m | - | - |
| E | 88.7 mt | 15.2 m | ∞ ° | 9.1 mt | 38.5 Mpa | 2x 100-130 l/min | 8440 kg | 2530 mm | 2550 mm | 1815 mm | 15.1 m | - | - |
| F | 87.8 mt | 17.5 m | ∞ ° | 2.5 mt | 38.5 Mpa | 2x 100-130 l/min | 8735 kg | 2530 mm | 2550 mm | 1815 mm | 17.4 m | - | - |
| G | 87.2 mt | 19.9 m | ∞ ° | 9.1 mt | 38.5 Mpa | 2x 100-130 l/min | 8983 kg | 2530 mm | 2550 mm | 1900 mm | 19.8 m | - | - |
| H | 84.5 mt | 22.4 m | ∞ ° | 9.1 mt | 38.5 Mpa | 2x 100-130 l/min | 9208 kg | 2530 mm | 2550 mm | 1900 mm | 22.3 m | - | - |
