PC 3800 Compact
Compact lightweight solutions between one and four metre tonnes with real PALFINGER power
- High value retention thanks to coating technology
- Optimum protection thanks to internal oil ducts in the extention cylinders
- Load holding valves prevent the crane boom from dropping
- Extended range of applications thanks to the optional radio remote control and cable winch
Technical data
| Max. lifting moment | 3,7 mt |
|---|---|
| Max. lifting capacity | 2000 kg |
| Max. hydraulic outreach | 5,0 m |
| Max. manual outreach | 7,1 m |
| Slewing angle | 325° |
| Fitting space required (std) | 445,00 m |
| Max. operating pressure | 200 bar |
| Pump capacity | 12 l/m |
| Weight | 238 t |

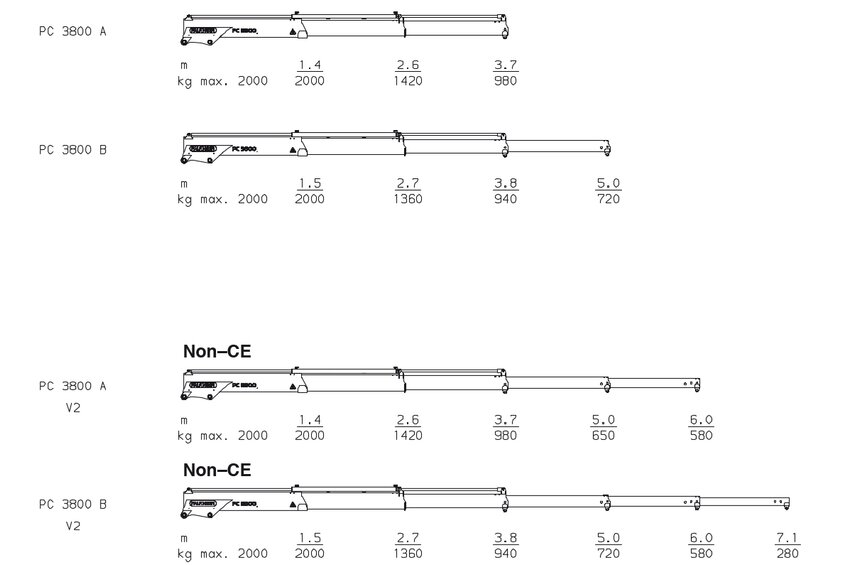

Technical data

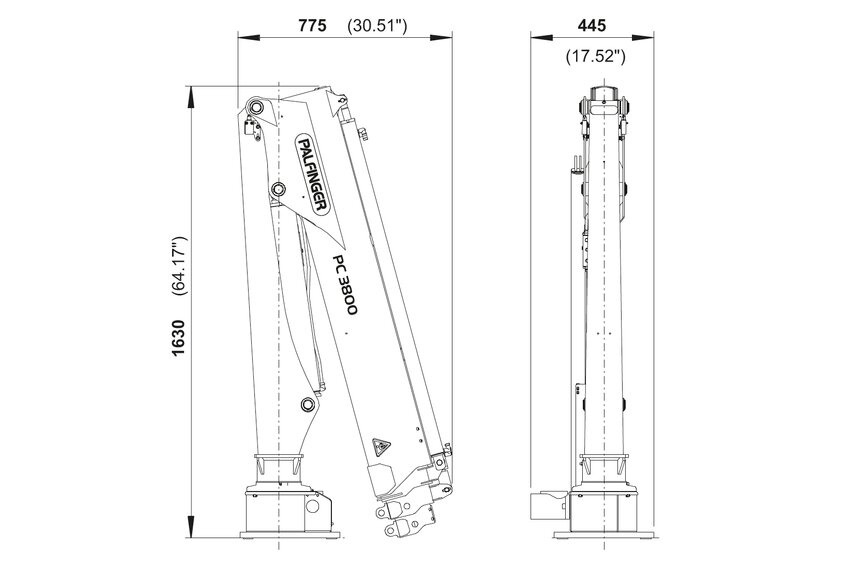

| Lifting moment | Outreach | Slewing angle | Slewing torque | Pressure | Pump capacity | Crane weight | Crane height | Crane width | Installation width | Max stroke length | Max. lifting capacity | Load vertical | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 3.7 mt | 3.7 m | 325 ° | 0.3 mt | 20.0 Mpa | 12 l/min | 238 kg | 1630 mm | 775 mm | 445 mm | 3747 mm | 2000 kg | 970 kg |
| B | 3.6 mt | 5.0 m | 325 ° | 0.3 mt | 20.0 Mpa | 12 l/min | 262 kg | 1630 mm | 775 mm | 445 mm | 4967 mm | 2000 kg | 710 kg |
