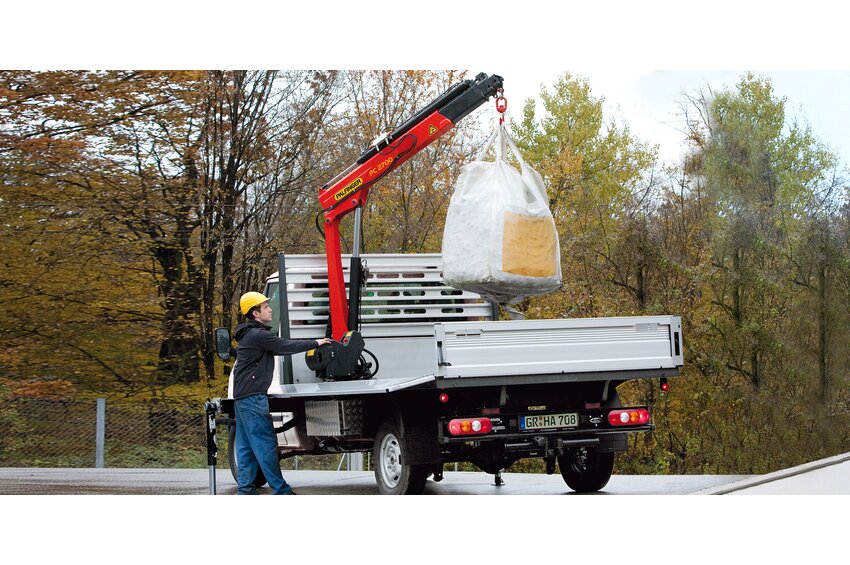

PC 2700 Compact
Compact lightweight solutions between one and four metre tonnes with real PALFINGER power
- High value retention thanks to coating technology
- Optimum protection thanks to internal oil ducts in the extention cylinders
- Load holding valves prevent the crane boom from dropping
- Extended range of applications thanks to the optional radio remote control and cable winch"
Technical data
| Max. lifting moment | 2,6 mt |
|---|---|
| Max. lifting capacity | 2000 kg |
| Max. hydraulic outreach | 5,0 m |
| Max. manual outreach | 6,0 m |
| Slewing angle | 325° |
| Max. operating pressure | 200 bar |
| Pump capacity | 9 l/m |
| Weight | 216 t |
Technical data
| Lifting moment | Outreach | Slewing angle | Slewing torque | Pressure | Pump capacity | Crane weight | Crane height | Crane width | Installation width | Max stroke length | Max. lifting capacity | Load vertical | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 2.6 mt | 3.7 m | 325 ° | 0.3 mt | 20.0 Mpa | 9 l/min | 207 kg | 1630 mm | 770 mm | 395 mm | 3747 mm | 2000 kg | 690 kg |
| B | 2.5 mt | 5.0 m | 325 ° | 0.3 mt | 20.0 Mpa | 9 l/min | 228 kg | 1630 mm | 770 mm | 395 mm | 4967 mm | 2000 kg | 500 kg |
